TP7030 Polyester Resin

    TP7030 Polyester Resin

    Polyester Resin

    Properties

    TP7030 is a Carboxyl Saturated Polyester Resin which is cured with Epoxy Resin (70:30) to produce the Hybrid Powder Coating providing excellent flow-abilities, mechanical properties, decorative effects, and very good yellowing resistance.



    Technical Parameters

    Description

    Testing Standard

    Specification

    Appearance



    Light White Granulate

    Color (50% DMF solution)

    (ASTM D 1544)

    ≤4

    Acid Value (mg KOH/g)

    (ASTM D 1613)

    25-35

    Softening Point (ºC)

    (Ball and Ring)

    95-115

    Glass Temperature (ºC)

    (ASTM D 3418)

    50 (Approx.)

    ICI Viscosity (175ºC)(Pa· S)

    (ASTM D 4287)

    0.45-0.6

    Note: Some specifications can be adjusted by your requirement.



    Recommended Formulation

    Ingredients

    WT%

    TP7030

    42.0

    Epoxy Resin

    18.0

    Titanium Dioxide

    30.0

    Flow Agent TP88

    5.0

    Benzoin

    0.5

    Curing Condition: 180ºC for 15min. (Metal Temperature)



    Package & Storage & Handling

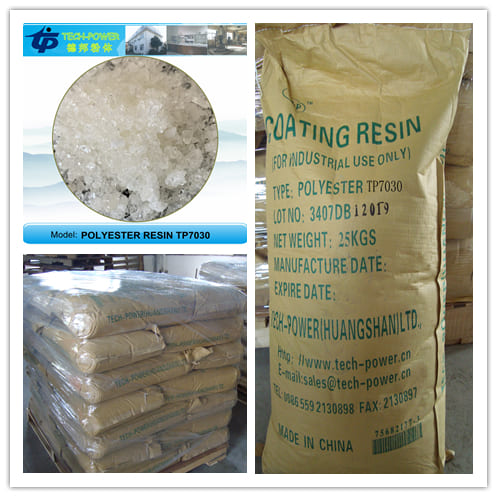

    1. With white polyethylene bags. 25 kg each net. 35 bags each pallet and fixed with plastic film.

    2. Away from heat sources, avoid direct sunshine and keeping in each pallet separately.

    3. Validity will be 1 years under normal temperature.

    Toxicity safety measures

    This resin is non-flammable and no toxicity is known. Follow usual hygiene practice when handling resin. However take into account the potential risk resulting from additives such as catalysts, hardeners, pigments, etc.

    FDA Statement

    When properly formulated and cured for food contact application, TP7030 will comply with the US Food, Drug and Cosmetic Act as amended under food additive Regulation 21 CFR 175.300.This use is subject to good manufacturing practices and any limitations which are part of the regulations. The regulations should be consulted for complete details.
